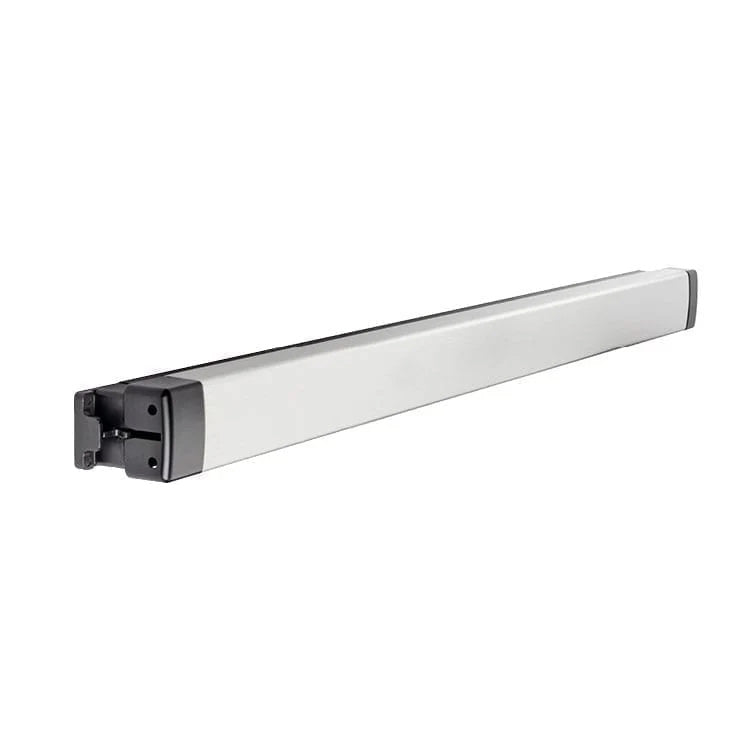

Adams Rite 8800EL Narrow Stile Rim Exit Device with Electric Latch Retraction

Adams Rite 8800EL Narrow Stile Rim Exit Device with Electric Latch Retraction

The Adams Rite 8800EL is a narrow-stile rim exit device designed for aluminum storefront doors requiring remote electric latch retraction. Its patented Starwheel bolt interlocks the door to the frame for strong mechanical security while preserving free egress from the pushbar side.

The EL option uses a solenoid-driven latch retraction mechanism for instantaneous unlocking from an access-control system or other approved remote control. The device is configured fail-secure, so loss of power returns the exit device to the latched condition while mechanical egress remains available through the pushbar.

Key Features

• Designed for 1-3/4 in. aluminum doors
• Minimum 2 in. stile; fits narrow, medium and wide stile aluminum doors
• Patented Starwheel rim latch design
• Solenoid-driven electric latch retraction
• Fail-secure operation
• Continuous or intermittent electrical operation
• Compatible with request-to-exit monitoring
• Non-handed
• Grade 1 commercial exit hardware
• UL 305 listed panic hardware
• No manual dogging; electric latch retraction provides remote hold-open/retraction function
• Standard and narrow strikes included

Electrical Requirements

12 VDC: 1.5 amps inrush / hold
24 VDC: 0.6 amps inrush / hold

Power supply capacity, wire size, voltage drop and access-control relay design should be verified before installation. Electric latch retraction devices can have higher current requirements than standard electric strikes or readers.

Available Sizes & Finishes

• 36 in., 42 in. and 48 in. nominal lengths
• 628 clear anodized aluminum
• 313 dark bronze anodized
• 335 black anodized

Standard bars can be field-cut to the next smaller opening width when installed according to manufacturer requirements.

Access Control Applications

The 8800EL is a strong choice for commercial aluminum storefront doors where the opening needs to remain mechanically free for egress while access control remotely retracts the latch for authorized entry. Typical applications include office entrances, schools, clinics, retail spaces, commercial tenant entrances and other high-use aluminum storefront openings.

For access-control installations, the exit device can be coordinated with Brivo or other commercial access-control systems, door-position monitoring, request-to-exit monitoring, power supplies and appropriate exterior trim.

Key Cylinder / Exterior Trim

The required key cylinder depends on the exterior trim function. For a typical pull with mechanical key override, a standard 1-5/32 in. rim cylinder such as the Adams Rite 8736 is commonly used. Lever-trim configurations may instead require a compatible mortise cylinder and Adams Rite cam. Exterior trim and cylinder should be selected based on the exact door function.

Installation in Austin & Central Texas

Avenger Security Services / Security Tekton installs Adams Rite exit devices, electrified door hardware and commercial access-control systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville, Hutto and Central Texas. We can coordinate the exit device, power supply, access-control relay, reader, door-position switch and other hardware as one complete opening.

Manufacturer: Adams Rite
Model: 8800EL Series
Type: Narrow Stile Rim Exit Device with Electric Latch Retraction
Door Application: 1-3/4 in. aluminum doors
Minimum Stile: 2 in.
Handing: Non-handed
Lengths: 36 in., 42 in., 48 in.
Electrical: 12 VDC / 1.5A or 24 VDC / 0.6A
Operation: Fail-secure electric latch retraction
Listing: UL 305 Panic Hardware
Grade: Grade 1
